GFF3 and GTF formats

For the full specification, see the GFF3 specification.

GFF3 (Generic Feature Format version 3) is a tab-delimited format for describing genomic features such as genes, transcripts, and exons, along with the relationships between them. It is one of the most common ways to distribute gene annotations.

Format

Each feature is described by nine tab-separated fields:

  • seqid — the name of the sequence (for example a chromosome) the feature is on.

  • source — the program or database that produced the feature.

  • type — the kind of feature (for example gene, mRNA, exon).

  • start — the 1-based start coordinate of the feature.

  • end — the end coordinate of the feature.

  • score — a numeric score for the feature, or . if none.

  • strand — +, -, or . for unstranded.

  • phase — for CDS features, where the next codon begins (0, 1, or 2); otherwise ..

  • attributes — a semicolon-separated list of tag=value pairs. This is where identifiers and parent/child relationships are recorded using the ID and Parent tags.

Example

The canonical example from the specification describes a gene named EDEN with three alternative transcripts:

##gff-version 3
ctg123       .       gene    1000    9000    .       +       .       ID=gene00001;Name=EDEN
ctg123       .       mRNA    1050    9000    .       +       .       ID=mRNA00001;Parent=gene00001;Name=EDEN.1
ctg123       .       mRNA    1050    9000    .       +       .       ID=mRNA00002;Parent=gene00001;Name=EDEN.2
ctg123       .       mRNA    1300    9000    .       +       .       ID=mRNA00003;Parent=gene00001;Name=EDEN.3
ctg123       .       exon    1300    1500    .       +       .       ID=exon00001;Parent=mRNA00003
ctg123       .       exon    1050    1500    .       +       .       ID=exon00002;Parent=mRNA00001,mRNA00002
ctg123       .       exon    3000    3902    .       +       .       ID=exon00003;Parent=mRNA00001,mRNA00003
ctg123       .       exon    5000    5500    .       +       .       ID=exon00004;Parent=mRNA00001,mRNA00002,mRNA00003
ctg123       .       exon    7000    9000    .       +       .       ID=exon00005;Parent=mRNA00001,mRNA00002,mRNA00003
ctg123       .       CDS     1201    1500    .       +       0       ID=cds00001;Parent=mRNA00001
ctg123       .       CDS     3000    3902    .       +       0       ID=cds00001;Parent=mRNA00001
ctg123       .       CDS     5000    5500    .       +       0       ID=cds00001;Parent=mRNA00001
ctg123       .       CDS     7000    7600    .       +       0       ID=cds00001;Parent=mRNA00001

The Parent attribute is what ties the features together: each exon and CDS names the mRNA it belongs to, and each mRNA names its gene. This lets a program reconstruct the full structure of the gene.

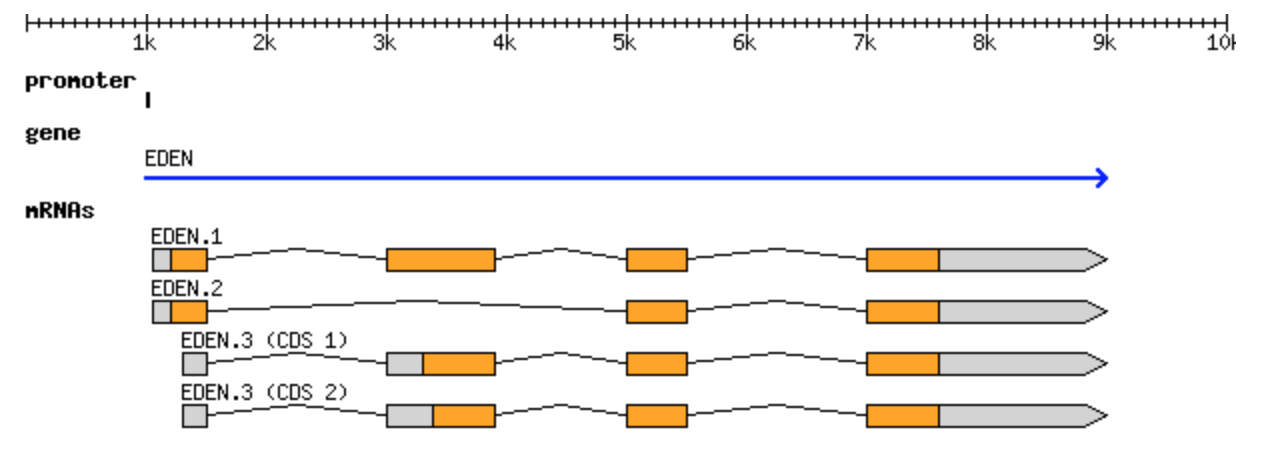

Diagram of the EDEN gene showing its three transcripts and their exons

The EDEN gene from the example above, drawn out as a gene model with three alternative transcripts. Source: GFF3 specification.

What about GTF?

You will often see the closely related GTF (Gene Transfer Format, also called GTF2). GTF and GFF3 are not the same format, but they are close relatives, and both are in wide use today. GTF shares the same nine tab-separated columns as GFF3, but differs in how the ninth (attributes) column is written and in how features are grouped:

  • GTF attributes use the form key "value"; (the value is quoted and each pair ends with a semicolon), whereas GFF3 uses key=value pairs separated by semicolons.

  • GTF groups features using gene_id and transcript_id attributes rather than the GFF3 ID and Parent scheme.

A GTF line looks like this:

ctg123       .       exon    1300    1500    .       +       .       gene_id "gene00001"; transcript_id "mRNA00003";

Which format you use is usually dictated by the tool: many RNA-seq tools expect GTF, while GFF3 is common for genome annotation. Reference annotations are frequently distributed in both.

Software that use GFF3 and GTF

Annotation files are used throughout transcriptomics and visualization:

  • TopHat — spliced alignment guided by a GTF/GFF annotation.

  • HTSeq — counting reads per feature.

  • IGV — visualizing features alongside alignments.

  • GBrowse and the UCSC Genome Browser — displaying annotations in a genome browser.
